Comparing VB Migration Partner with Upgrade Wizard

A common question coming from VB6 developers is how well VB Migration Partner compares with Upgrade Wizard, the conversion tool provided for free inside Microsoft Visual Studio, in terms of compilation errors and warnings.

This document answers this question with two complementary approaches. In the first part, it illustrates the results you can get when running both programs over a number of VB6 projects. In the second part it describes how both programs solve (or fail to solve) the most common issues you face when migrating VB6 apps to .NET.

Test #1: Migrate open source VB6 projects

Instead of just providing a series of unverifiable numbers, we run both tools against a group of open source code samples which offer a variety of challenges, including rarely-used controls, data-binding, graphic methods, and drag-and-drop.

We didn’t edit any executable statement in the original VB6 nor in the converted VB.NET code. In about half of these cases, however, we made a second pass through VB Migration Partner after adding all the pragmas that were necessary to reach a fully functional .NET project.

We benchmarked the Upgrade Wizard installed with Microsoft Visual Studio 2005 and release 1.00.06 of VB Migration Partner, on a Intel Core Duo 7800 @ 2.66GHz running Microsoft Windows Vista 64-bit SP1. (NOTE: we ran these tests before Microsoft Visual Studio 2008 and VB Migration Partner version 1.10 were released.)

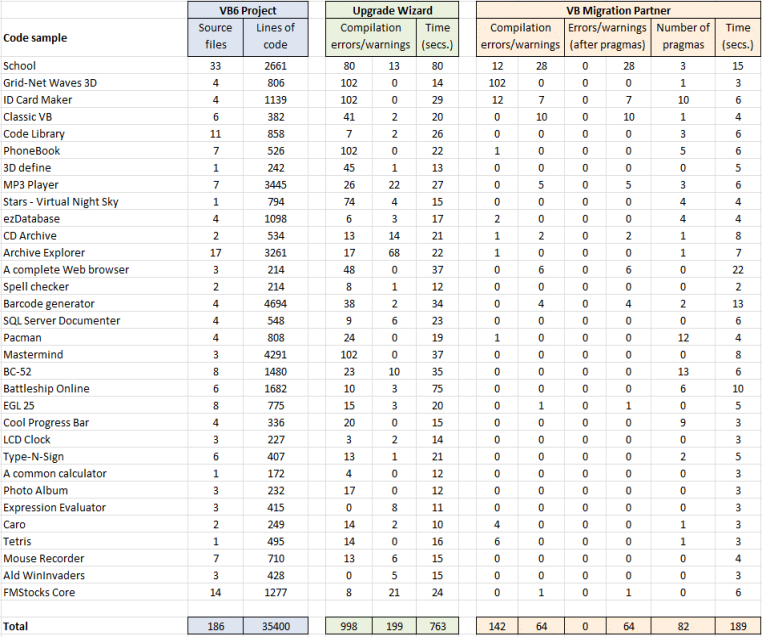

The results are available in a Microsoft Excel spreadsheet for all to see.


A summary of the results:

  • VB Migration Partner generates nearly 5x fewer compilation errors than the Upgrade Wizard before adding a single pragma. In four cases, Upgrade Wizards generates just too many compile errors for Visual Studio to display (the max number is 102 errors), therefore the actual ratio is even higher.
  • When comparing Upgrade Wizard and VB Migration Partner, the mere number of compilation errors in generated code is quite misleading, because in most cases, VB Migration Partner permits you to get rid of all these errors with just one or two pragmas.
  • Considering all the pragmas used in all samples delivers we get an average of one pragma every 430 line of code; in a real application you need even fewer pragmas because a single pragma can affect all the files and statements in the project.
  • The Upgrade Wizard processes about 46 LOCs per second on the average, VB Migration Partner runs at 187 LOCs per second, i.e. 4 times faster. However, these timings are misleading, because at the end of the process VB Migration Partner generates code statistics and reports that the Upgrade Wizard doesn't.

Interestingly, most of the compilation errors you get from VB Migration Partner come from the first two code samples – School and Grid-Net Waves 3D. If you exclude them from the stats, it turns out that VB Migration Partner averages at one compilation error every 1140 LOCs before adding a single pragma, and is therefore about 30 times better than the Upgrade Wizard (which delivers one compilation error every 40 LOCs). On large, real-world VB6 projects we’ve seen that the actual ratio is between 8x and 12x.

It’s important to bear in mind that compilation errors and warnings tell only a part of the story, because even a VB.NET project with zero compilation errors might raise one or more runtime errors. In other words, the samples that show zero compilation errors after the migration with the Upgrade Wizard might require a lot of additional work to run correctly. By comparison, the column labeled as Number of pragmas indicates how many pragmas were needed to have a fully functional VB.NET application that raises no runtime errors.

An important note: These values are to be used only to compare VB Migration Partner’s speed and precision as relative to the Upgrade Wizard, not as a way to measure VB Migration Partner’s performance in absolute terms. When running on large, real-world projects, VB Migration Partner tends to be up to 7-8x times faster than Upgrade Wizard.

Along the same lines, the number of pragmas that are necessary to reach a fully functional VB.NET application tend to decrease - in percentage over the total number of executable lines – when the VB6 application gets larger, because often one single pragma scoped at the project-level can solve all similar occurrences of a given compile or runtime error.

Test #2: Aivosto’s compatibility checklist

Another way to compare VB Migration Partner with Upgrade Wizard is checking which migration issues either software can solve automatically.

VB Project Analyzer is a popular tool available on Aivosto's web site. It performs code analysis, dead code detection and removal, coding and naming rule enforcement. It can find common programming errors (including memory leaks caused by undisposed API handles), can optimize your code much faster than the fastest and smartest developer, and can generate a thorough documentation of all classes, forms, and members (including cross-reference data to detect who call whom). Best of all, it works with VB6, VB.NET, and VBA.

If you are preparing your VB6 apps for migration to .NET, Aivosto’s VB Project Analyzer is also very helpful, because it can automatically spot most VB6 language elements that the Update Wizard doesn't convert correctly to VB.NET. The online help includes the list of all compatibility checks that VB Project Analyzer performs. Please refer to the original list for an explanation of each compatibility issue.

VBMP stands for VB Migration Partner, UW stands for Upgrade Wizard
signed means that a given feature is supported by VB Migration Partner (VBMP)
signed * means that the feature appears in Aivosto compatibility check but is supported by Upgrade Wizard 2008 (UW)
signed P means that VBMP supports the feature only partially: for example, it doesn’t cause a compilation error yet it doesn’t ensure functional equivalence at runtime.

Add-in model changed in VB.NET   VBMP is unable to migrate add-ins because the IDE object model is too different, but it emits a warning.
ADO required for data binding in VB.NET
VBMP supports DAO, RDO and ADO data-binding, including binding with DataEnvironment objects, ADO data source classes, and simple-bound data consumer classes.
Array must start at 0 in VB.NET
VBMP supports several strategies for migrating arrays with non-zero LBound. Not only does it fix the array declaration, it can even modify the index used to reference individual array elements.
As Any not allowed in VB.NET
VBMP correctly converts As Any arguments by producing one or more overloads of the Declare statement.
As New doesn't auto-instantiate if object released in VB.NET
VBMP optionally supports the lazy-instancing feature of As New variables.
As New unsupported for arrays in VB.NET
VBMP can correctly translate As New arrays by preserving the VB6 semantics.
ByRef property params unsupported by VB.
VBMP converts ByRef arguments inside properties into ByVal arguments because VB.NET requires it; however it emits a warning if the argument appears to be modified inside the property procedure – or is passed to another method that can modify it.
ByVal/ByRef not allowed in API calls in VB.NET
VBMP safely resolves ByVal and ByRef in calls to API methods.
Circle and Oval unsupported by VB.NET
signed *
VBMP correctly converts Line and Shape controls, and even translates graphic methods such as Line, Circle, PSet, PaintPicture, etc.
Class Instancing changes in VB.NET
VBMP deals with SingleUse objects as if they were MultiUse, because .NET has no notion of “single use” objects. Global objects are converted correctly.
COM method not callable from VB.NET   VBMP can’t handle COM module methods.
COM+/MTS not upgradable to VB.NET
VBMP correctly converts all frequently used MTS/COM+ features into the corresponding .NET features.
Conditional block will not upgrade to VB.NET   VBMP doesn’t migrate code inside an #IF block whose condition is false.
Control unsupported by VB.NET
VBMP converts 60+ controls, including all those included in the VB6 toolbox with the only exception of OLE Container. It supports other commonly used controls such as WebBrowser and ScriptControl, and all the windowless controls in the MSWLESS library.
DDE unsupported by VB.NET
signed P
VBMP supports DDE communications, among migrated VB.NET apps.
Diagonal line unsupported by VB.NET
signed *
VBMP supports the Line control, with any inclination and style.
DoEvents() returns no value in VB.NET
VBMP provides a DoEvents6 replacement statement that returns the number of open forms.
Drag-and-drop requires rewrite for VB.NET
VBMP fully supports OLE drag-and-drop, in both the manual and automatic flavors. Starting with version 1.20, VBMP version also supports “classic” (non-OLE) drag-and-drop.
Event behavior changes in VB.NET
VBMP fully supports all these (and other) events, no work is required after update.
Event log model differs in VB.NET
VBMP supports all the Event Log-related properties and methods.
Initialized arrays in UDTs unsupported by VB.NET
VBMP correctly initializes UDTs containing arrays, fixed-length strings, and auto-instancing (As New) object variables. It even generates special code to correctly convert assignments between UDTs that contain these members. (UW doesn’t even emit a warning in that case.)
MDIForm event unsupported in VB.NET
VBMP correctly handles mouse-related events inside MDI forms.
Member cannot be default in VB.NET
VBMP offers the same degree of support that UW does. In addition, VBMP can convert a default method with parameters into a VB.NET ReadOnly Property and then mark it as the default member of that class.
Module not upgradable to VB.NET
signed P
VBMP doesn’t migrate DHTML and WebClass components. However, it converts UserDocument and PropertyPages into VB.NET UserControls, thus you have something to work with after the migration even though you'll need additional manual coding to have it work as expected.
No control arrays in VB.NET
VBMP correctly converts all sorts of VB6 control arrays, including arrays of menus and 3rd-party ActiveX controls.
Old VB project not upgradable to VB.NET   VBMP has the same limitation as UW and requires that you migrate VB3, VB4, and VB5 projects to VB6 before attempting the migration to VB.NET.
OLE Automation unavailable in VB.NET
signed P
VBMP converts OLE Automation features into do-nothing members that are marked as obsolete. Calling these members has no effect or throws an exception, but at least you can start testing other portions of the application without having to fix one or more compilation errors.
ParamArray is ByVal in VB.NET
VBMP can automatically generate code that ensures that ParamArray use by-reference semantics.
Parameterless default properties unsupported in VB.NET
VBMP behaves like UW when the object variable is typed; when the variable uses late binding, VBMP can generate code that determines the default member at runtime.
Property mixes scopes
signed *
VBMP correctly converts property procedures with mixed scope.
Property passed ByRef
VBMP can convert ByRef parameters into ByVal parameters if the parameter isn’t assigned inside the method.
Resource file requires work in VB.NET
VBMP converts both the resource file and all LoadRes* methods; it even converts them to My.Resources members if possible.
ScaleMode must be vbTwips for VB.NET
VBMP supports all ScaleMode settings, including 0-vbUser.
Setting .Interval does not enable/disable timer in VB.NET
Projects converted by VBMP don’t suffer from this issue.
String byte functions unavailable in VB.NET
signed P
VBMP partially support byte-oriented string functions, such as LenB or InStrB; it also support implicit conversion between strings and byte arrays, and conversions between ANSI and Unicode strings.
Sub Main not executed in VB.NET
VBMP fixes this issue: a VB.NET class library project that is the result of converting a VB6 ActiveX DLL project correctly executes the Sub Main method before any class in the library is instantiated.
Sub Main
.NET program exits at End Sub: VBMP can handle this issue by adding a proper pragma.
TTF/OTF fonts required by VB.NET
VBMP allows you to determine how fonts are converted during the migration to VB.NET.
Type unsupported by VB.NET
VBMP comes with a VB6FixedString type that perfectly mimics the VB6 fixed-length string type; also, VBMP can convert arrays of fixed-length strings; additionally, fixed-length strings in UDTs can be converted into standard strings and still retain the fixed-length behavior
Unavailable in VB.NET
VBMP supports CVErr, GoSub, Return, vbDataObject, vbUnicode, vbFromUnicode, IsEmpty, and a limited form of LSet that works with UDTs. (It doesn’t support VarPtr, ObjPtr, and StrPtr undocumented functions, though.)
Underscore _names not hidden in VB.
VBMP doesn’t deal names with a leading underscore in a special way, however it recognizes VB6’s hidden members and convert them correctly to VB.NET.
VB5 project may not upgrade to VB.NET
signed P
VBMP converts only VB6 projects, therefore VB5 projects must be converted to VB6 first. However, it supports the Common Windows controls released with VB5.
WebClasses upgrade to ASP.NET   VBMP doesn’t convert WebClass projects. We strongly believe that such projects should be upgraded to ASP.NET in all cases.
Function without type specification
VBMP emits a warning if a function or property has no As clause; you can use the SetType pragma to define the type returned by the VB.NET function without altering the VB6 code.
Variable without type specification
VBMP emits a warning if a variable or parameter has no As clause; however, you can use the SetType pragma to define the type of the VB.NET variable without altering the VB6 code.
ByVal/ByRef missing
By default, VBMP doesn’t take any action if an explicit ByRef/ByVal keyword is missing and converts these parameters as ByRef parameters; however, it emits a warning if a ByRef parameter can be safely converted as a ByVal parameter and you can use the UseByVal pragma to automatically convert such parameters into ByVal parameters.
Option Explicit missing
VBMP doesn’t take any specific action if Option Explicit is missing; however, you can use a pragma to automatically create VB.NET variables for all VB6 variables that weren’t explicitly declared.
Optional parameter missing default value
VBMP automatically add the property default value for Optional parameters if necessary.
Variable/Parameter with generic type
VBMP provides statistics about Variant variables and allows you to use the SetType pragma to change the type of a variable or parameter during the conversion to VB.NET, without affecting the existing VB6 code.

To recap, VB Migration Partner can fully or partially handle 44 of the 49 compatibility issues that are left unresolved by the Upgrade Wizard. The remaining 5 unresolved issues are related to features that just don't make sense under .NET - such as OLE-related properties, the IDE extensibility object model, and WebClasses components.

Even more important, VB Migration Partner fixes many more compatibility issues than those listed in this page. As a matter of fact, VBMP solves many problems that even VB Project Analyzer fails to detect. (Read here and here for a more exhaustive list of migration problems.)
